产品视频 Product Video
产品特性 Product Features
产品可在各种易燃、易爆场所安全工作。
铸铝合金外壳，表面喷塑防静电，耐腐蚀，防水，防尘，可在高温、潮湿和各种腐蚀性恶劣环境下长期使用；
透明钢化玻璃保护罩、透光性好，耐冲击，光通量高、节能、环保等优点。
外形美观、结构简单可靠、易于安装；结构钢管或电缆布线均可；

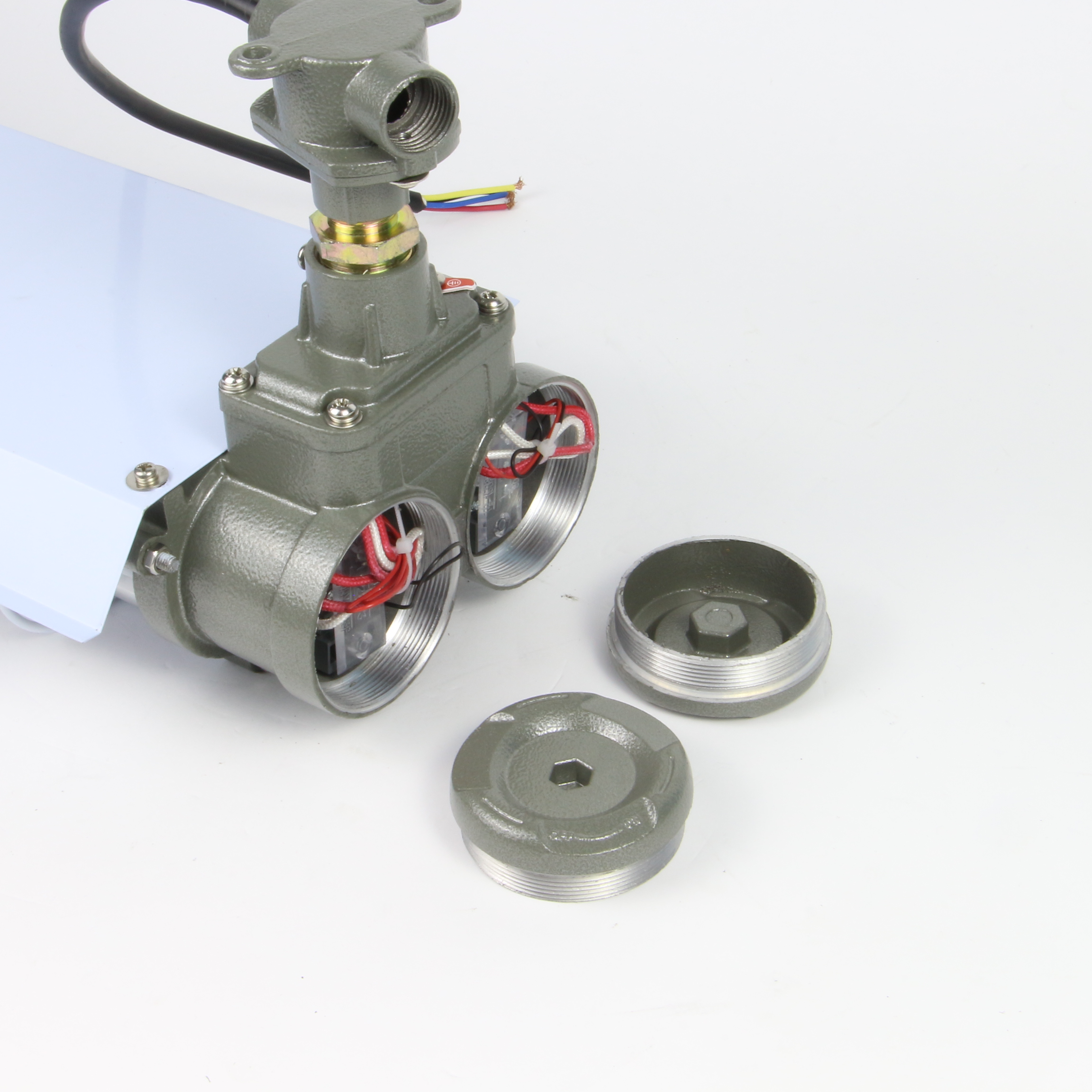

独立接线腔设计，使接线布线更为方便快捷。
Products can work safely in various flammable and explosive places.
Cast aluminium alloy shell, surface spraying anti-static, corrosion-resistant, waterproof, dust-proof, can be used in high temperature, humidity and various corrosive harsh environments for a long time;
Transparent toughened glass protective cover, good light transmittance, impact resistance, high light flux, energy saving, environmental protection and other advantages.
Beautiful appearance, simple and reliable structure, easy installation; structural steel pipe or cable wiring can be;
Independent wiring cavity design makes wiring more convenient and fast.
产品细节展示 Product show details
| 为什么选择我们？|专注工业照明 专业生产制造 | ||

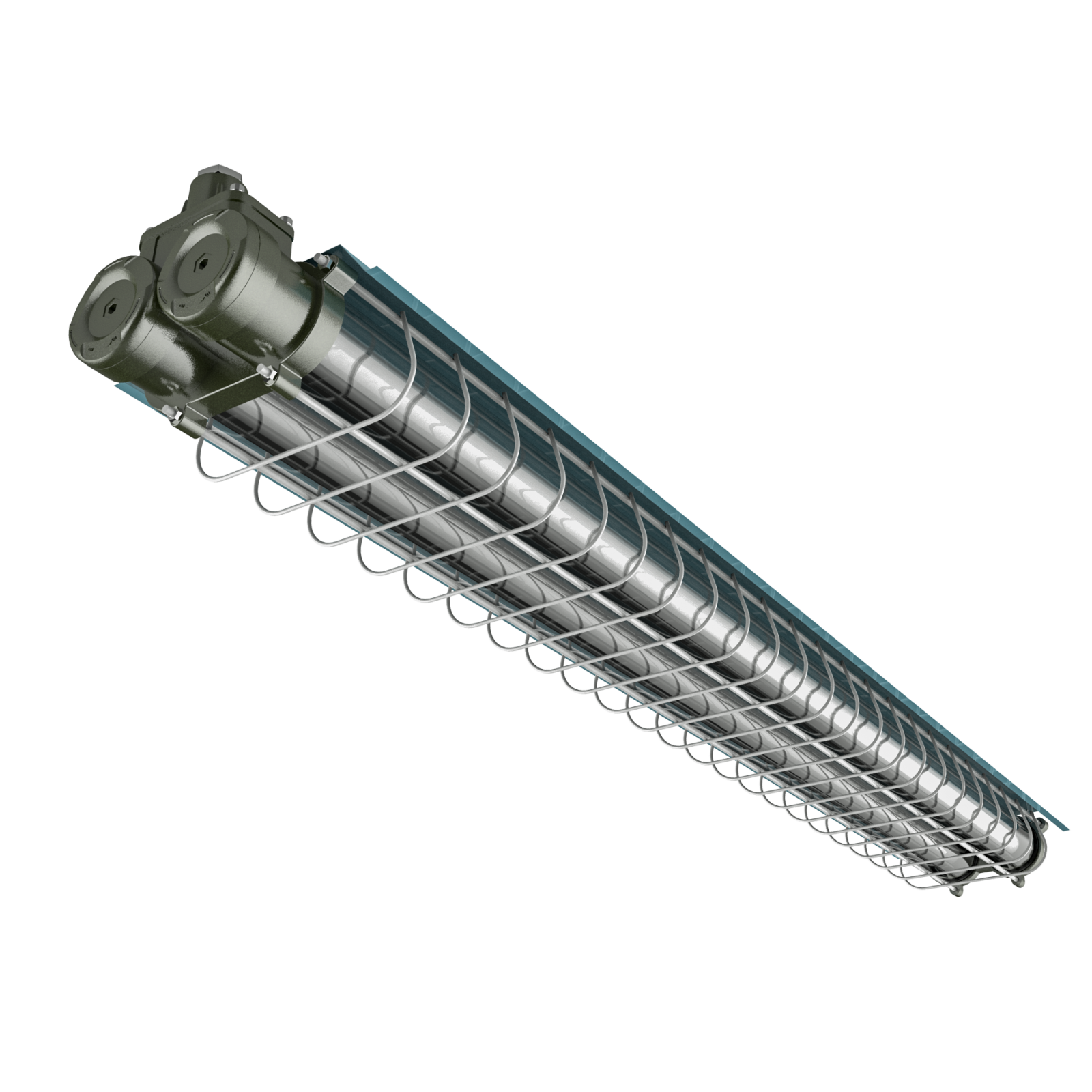

渲染图
| 良”芯“，高光效
| 安全防爆，精工选材
|
导热优良，散热更强

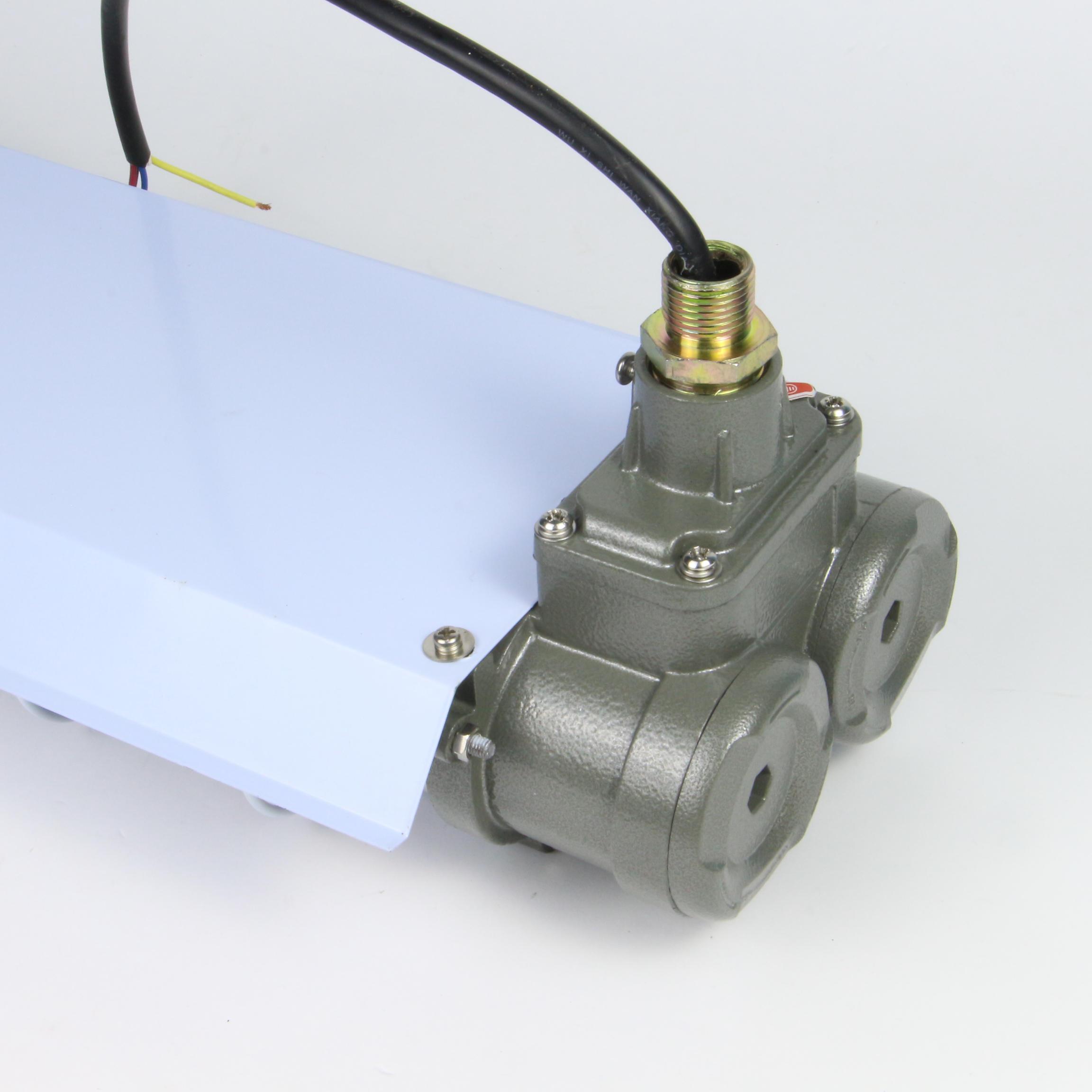

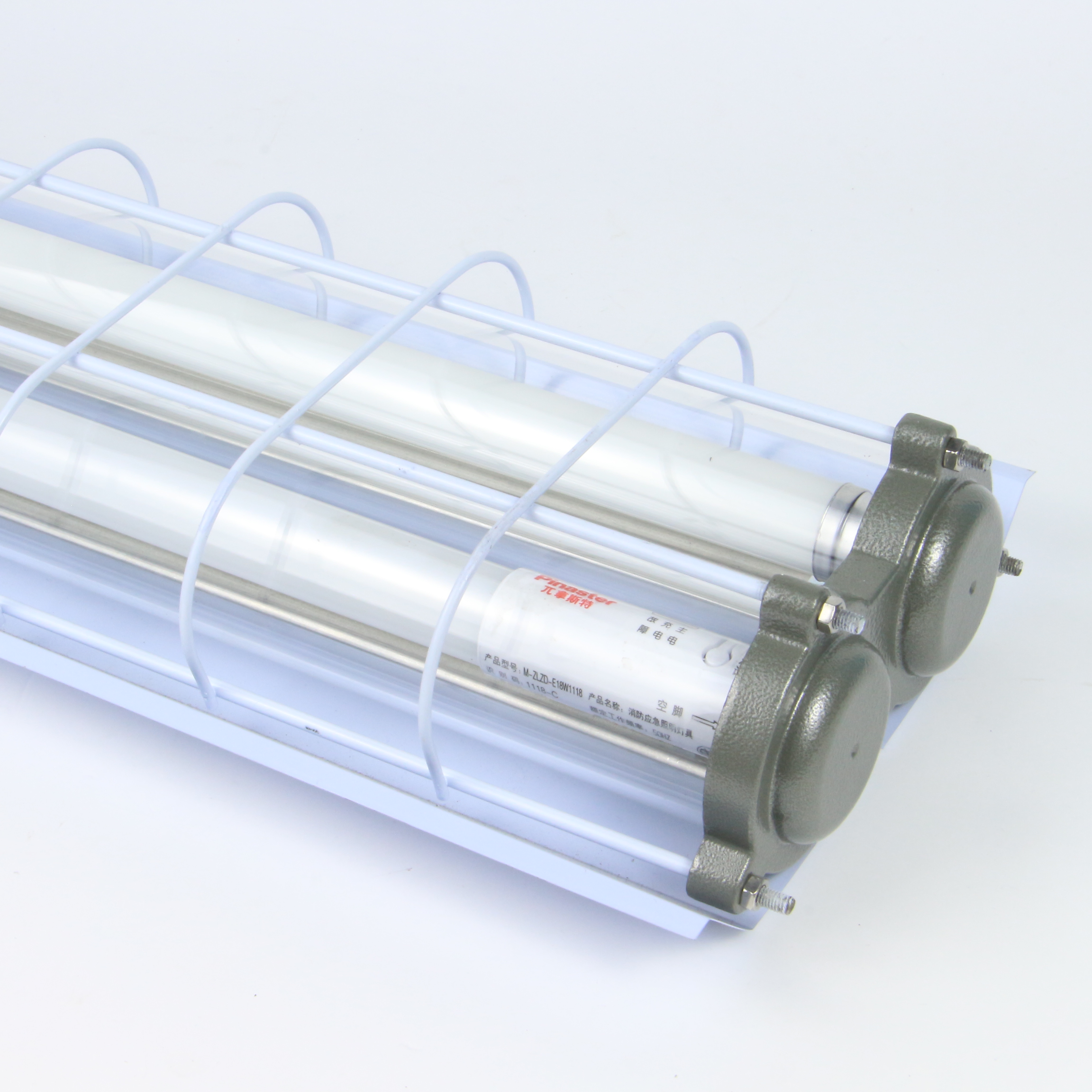

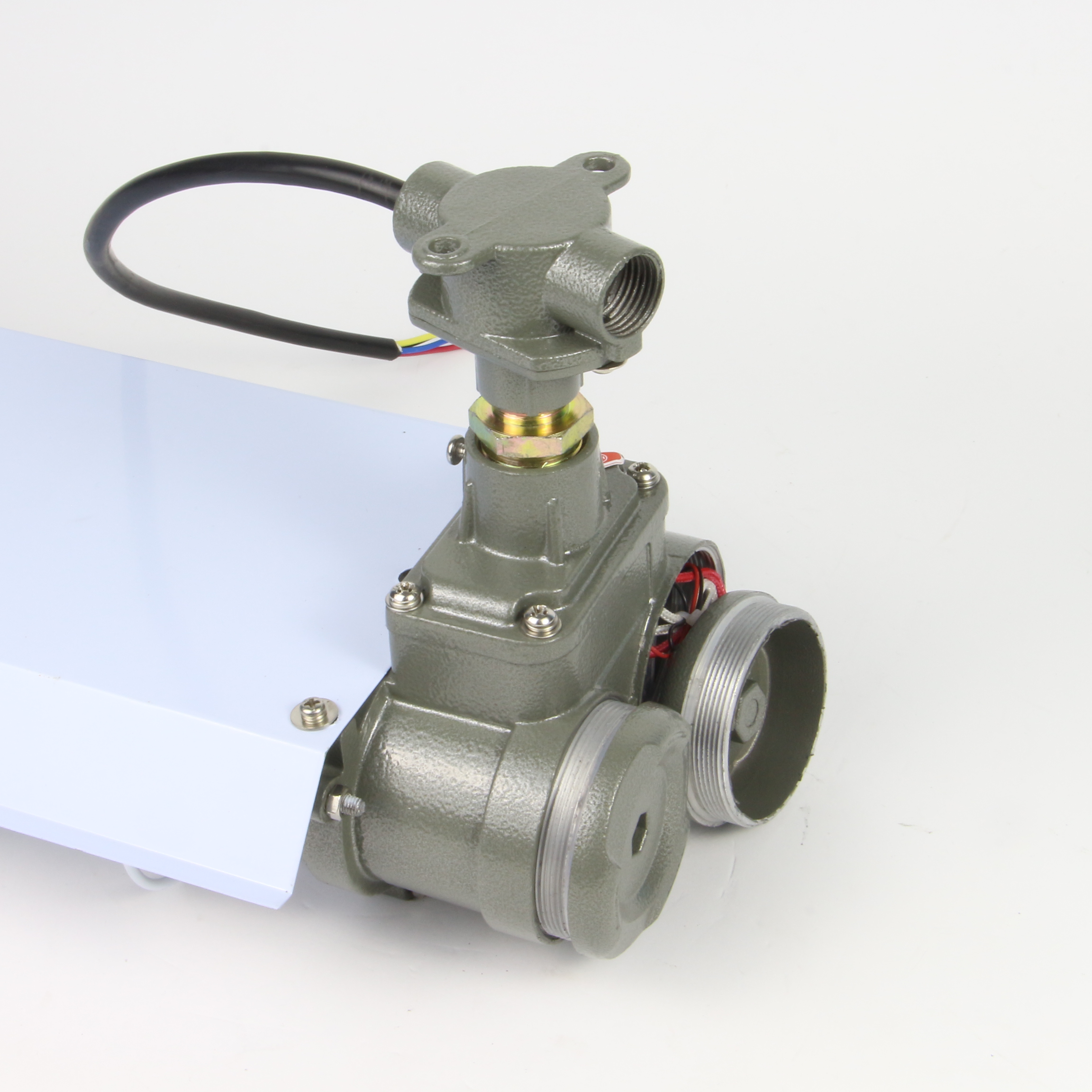

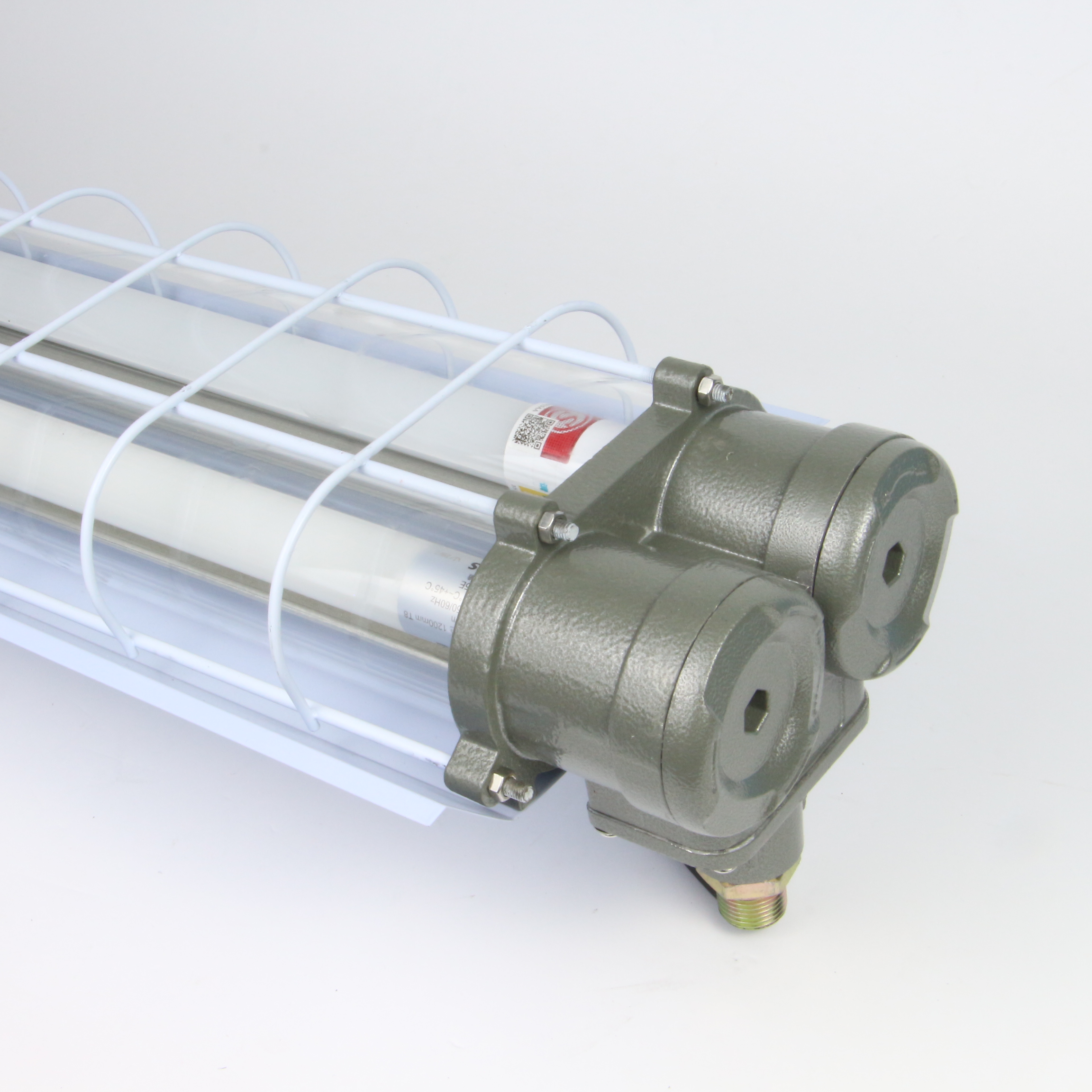

| 细节展示|精工制造
钢化玻璃
| 防水·防尘·防腐
|
产品参数 Productparameters
| 项目ITEM | 符号Symbol | 描述Description | 单位UNIT |
| 额定电压/Rated Voltage | VOLT | 220 | V |
| 功率 /Power | P | 2*16 | W |
| 防护等级/Protection Level | IP | IP65 | IP |
| 发光角度/Lighting Angle | θ | 360 | ° |
| 光源规格/Light source specifications | / | T8荧光灯管3030 | / |
| 灯珠数量/LED Qty | / | 360 | / |
| 防腐等级/Anticorrosion grade | / | WF2 | / |
| 防爆等级/Explosion proof grade | / | Ex d ⅡB T6 Gb/Ex tD A21 IP66 T80℃ | / |
| 光效/Light efficiency | η | 90~120 | Lm/W |
| 频率/Frequency | f | 50/60 | Hz |
| 功率因数/Power Factor | PF | ＞0.95 | PF |
| 工作温度/Operating Temperature | TOPR | -20~40 | ℃ |
| 灯具使用光源/Light Source | / | led | PCS |
| 相关色温/Correlate Color Temperature | CCT | 3000-6500 | K |
| 显色指数/Color Rendering Index | CRI | ≥70 | RA |
| 光源工作寿命/LED'S Operating Life | LIFE | 50000 | Hours |
| 启动时间/Start-up time | T | ≤0.2 | S |
| 执行标准/Executive standard | / | GB3836.1、GB3836.2 | / |
| 重量/Weight | / | 5.4 | KG |
| 尺寸/Size | / | 1280*123*146 | mm |

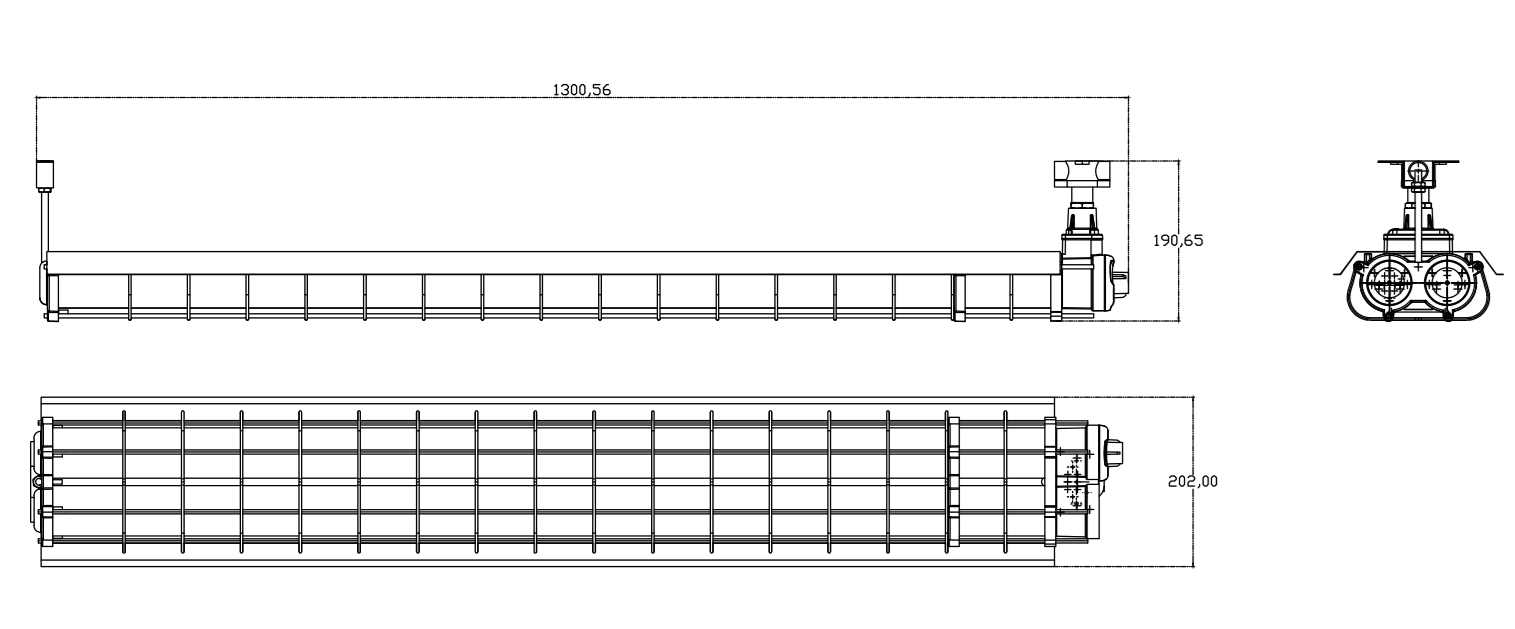

外形尺寸图 Dimensions
 |

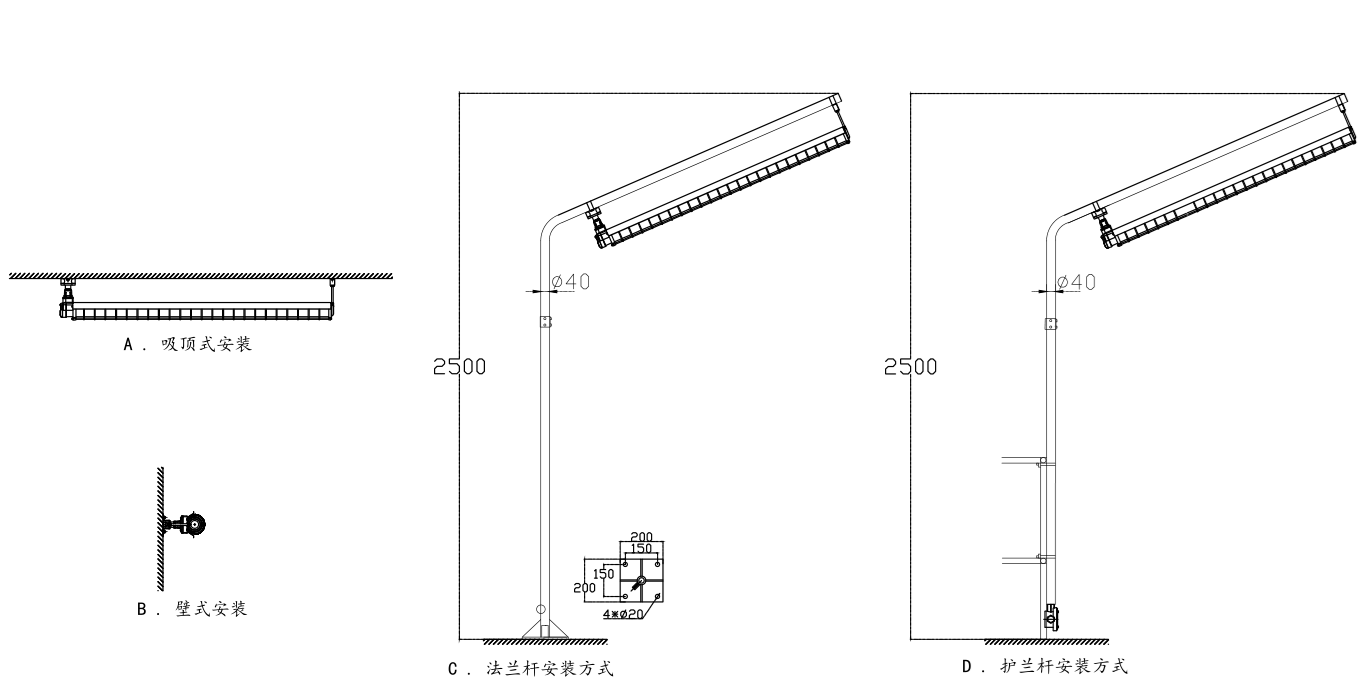

安装示意图 Install
包装物流 Packaging logistics
| 名称Name | 描述Description | 数量(pcs)Quantity | 名称Name | 参数Parameter |
| 外箱/Outer box | 137*23.5*20.7cm,五层瓦楞纸 | 1 | 净重N.W. | 10.8kg |
| 泡沫/Foam | 222*147*70mm | 4 | 毛重G.W. | 11.5kg |
| 包装方式/Packaging method | 1装2 | |||
注意事项 Caution
安装注意事项 Schematic diagram
安装和维护灯具时,必须先断开电源.
非专业人员不得随意拆卸灯具;
使用时,灯具表面有一定的温升,属正常现象;透明件中心温度较高,不得用手直接触摸;
When installing and maintaining lamps and lanterns, the power supply must be disconnected first.
Non-professionals are not allowed to disassemble lamps and lanterns at will.
When used, there is a certain temperature rise on the surface of lamps and lanterns, which is a normal phenomenon; the central temperature of transparent parts is higher, so it is not allowed to touch directly with hands.
警告 Warning
不可直接安装在可燃物上.
更换任何已裂开的保护屏.
灯具必须可靠接地.
Do not install directly on combustibles.
Replace any cracked protective screen.
Lamps must be grounded reliably.
使用注意事项 Using The Matters Needing Attention
运输时需将灯具装在所配备的纸箱内，并加装泡沫减震。
电源电压在规定范围内可正常工作，电源电压过高会损坏灯具；电压过低，会造成灯具无法正常启动。
ransport lights should be installed in the cartons equipped with foam shock absorption.
The power supply voltage can work normally within the prescribed range, too high the power supply voltage will damage the lamps; too low the voltage will cause the lamps can not start normally.
