产品特性 Product Features
产品配置：光源采用(CREE)品牌LED发光芯片，超高光效，平均使用寿命长达 10万小时，均采用一线品牌电源驱动，宽电压技术处理，质量有保障，具有恒流输出，短路、过压保护等特点。
散热设计：光源散热器和电源腔分体设计，结构紧固，具有优良的导热和散热性能,有效控制灯具温升在合理范围之内，从而保证了灯具的使用寿命。
防爆性能：产品均严格按照国家防爆标准GB3836系列文件研发设计并取得国家认证的防爆证书及检测报告，证书齐全，精工制造，防爆性能安全可靠。
防护灯罩：采用高硼硅钢化玻璃，耐腐蚀，抗冲击，透光率高，光线照射均匀柔和，防眩光。
防护防腐：灯体采用高压静电喷塑处理，螺丝紧固件采用不锈钢材质，配合高精度加工工艺，具有高防腐、高防水、高防尘等特点。
安装便捷：可根据需求采用吸顶、吊杆等多种安装方式，满足低顶、平台、高顶、高棚等多种场所作为固定照明使用，独立人机接线腔设计，可快速实现灯具的串并联需求，使安装走线更便捷方便，
产品外观：外观沿用工业元素与结构完美融合，设计考究，棱角分明，采用专用灰配色，适合搭配各类厂区环境。
Product configuration: The light source is made of CREE brand LED luminous chip, with ultra-high luminous efficiency and an average service life of up to 100,000 hours. It is driven by first-line brand power supply and processed by wide voltage technology, with guaranteed quality and features of constant current output, short circuit and overvoltage protection.
Heat dissipation design: the light source radiator and the power supply cavity separate design, the structure is tight, with excellent heat conduction and heat dissipation performance, effectively control the temperature rise of the lamp within a reasonable range, so as to ensure the service life of the lamp.
Explosion-proof performance: products are in strict accordance with the national explosion-proof standard GB3836 series of documents research and development design and obtained national certification of explosion-proof certificate and test report, certificate complete, seiko manufacturing, explosion-proof performance is safe and reliable.
Protective lamp shade: the use of high borosilicate steel glass, corrosion resistance, impact resistance, high light transmittance, light irradiation uniform soft, anti-glare.
Protection and anticorrosion: the lamp body adopts high pressure electrostatic spray processing, the screw fasteners are made of stainless steel material, with high precision processing technology, with high anticorrosion, high waterproof, high dust and other characteristics.
Convenient installation: according to the needs of the ceiling, derrick and other installation methods, to meet the low top, platform, high top, high shed and other places as fixed lighting use, independent man-machine wiring cavity design, can quickly realize the series and parallel lighting needs, make the installation more convenient and convenient.
Product appearance: the appearance follows the perfect integration of industrial elements and structure, elegant design, angular, the use of special gray color, suitable for all kinds of factory environment.
产品参数 Productparameters
| 项目ITEM | 符号Symbol | 描述Description | 单位UNIT |
| 额定电压/Rated Voltage | VOLT | AC220 | V |
| 功率 /Power | P | 100/120/140 | W |
| 防护等级/Protection Level | IP | IP66 | IP |
| 防腐等级/Anticorrosion grade | / | WF2 | / |
| 防爆等级/Explosion proof grade | / | Ex d b be mb IIC T6 GB；Ex tb IIIC T80℃ Db | / |
| 光效/Light efficiency | η | 150 | Lm/W |
| 灯具使用光源/Light Source | / | LED | PCS |
| 相关色温/Correlate Color Temperature | CCT | 3000/4000/5000/5700K | K |
| 光源工作寿命/LED'S Operating Life | LIFE | 100000 | Hours |
| 重量/Weight | / | 6.1 | KG |
| 尺寸/Size | / | φ323*204 | mm |

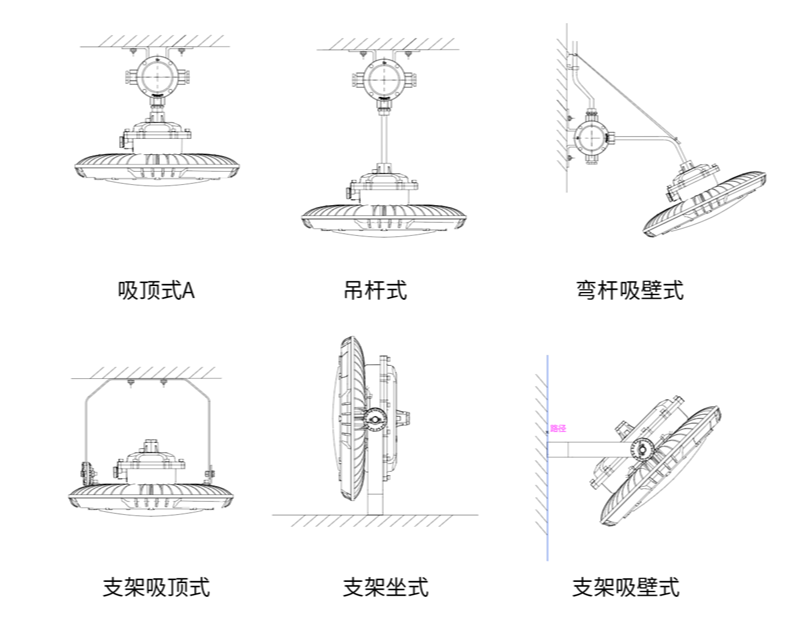

安装示意图 Install
注意事项 Caution
安装注意事项 Schematic diagram
安装前必须检查实际使用条件与灯具铭牌上所列参数是否相符。
安装前请先按照灯具铭牌参数进行通电点亮检测，确保灯具无质量问题后再进行安装。
安装前必须根据本产品所提供的安装方式结合现场使用环境和照明需求，来确定灯具的安装位置和安装方式，确保安装牢固可靠。
将备好的电缆线与灯具的输入电缆线按火线（棕色）、零线（蓝色）、地线（黄绿色）对应连接，确保连接牢固，并在连接处做好绝缘和防水措施。
将电缆线输入端接通相应电压的电源既可照明。
Before installation, it is necessary to check whether the actual operating conditions are in conformity with the parameters listed on the lamp nameplate.
Before installation, please test the lighting according to the parameters of the lamp nameplate to ensure that there is no quality problem before installation.
Before installation, it is necessary to determine the installation location and mode of the lamps according to the installation mode provided by the product, in combination with the on-site use environment and lighting requirements, so as to ensure that the installation is firm and reliable.
Connect the prepared cables with the input cables of lamps and lanterns according to the corresponding fire (brown), zero (blue) and ground (yellow-green) wires, so as to ensure that the connection is firm, and make good insulation and waterproof measures at the connection.
The input end of the cable can be connected to the power supply of the corresponding voltage to illuminate.
使用注意事项 Using The Matters Needing Attention
运输时需将灯具装在所配备的纸箱内，并加装泡沫减震。
使用时，灯具表面有一定的温升，属于正常现象。
电源电压在规定电压的范围内可正常工作，电源电压过高会损坏灯具；电压过低，会造成灯具无法正常启动。
灯具必须可靠接地。
本产品为防爆产品，可以在防爆场所使用。
When transporting, the lamp should be installed in the carton equipped with foam shock absorption.
When using, the surface of the lamp has a certain temperature rise, which is a normal phenomenon.
The power supply voltage can work normally in the rated voltage. If the power supply voltage is too high, the lamp will be damaged; if the voltage is too low, the lamp will not start normally.
The luminaire must be reliably grounded.
This product is explosion-proof product, can be used in explosion-proof places.
